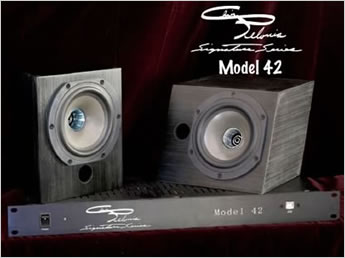

Model 42
System Type: 4" two-way Dual Concentric speaker
Frequency Response: 75Hz-35kHz (±3dB)
Frequency Range: 63Hz-37kHz (-10dB)
System Sensitivity: 90dB (395mV input, 2.83V output @ 1m, 1kHz LF output, -10dBV input sensitivity)
Rated Maximum SPL: 106dB (Peak SPL for 1 pair driven, 2.0V input @ 1m, -10dBV input sensitivity)
Dispersion: 60° (-6dB across frequency range)
THD: 0.6% (2.83V @ 1m, 1kHz LF output, 100Hz-10kHz)
LF Driver : 4" (100mm) multi fiber paper pulp cone)
LF Nominal Impedance: 6 Ohms
HF Driver: 0.75" (19mm) titanium dome with neodymium magnet system
HF Nominal Impedance: 4 Ohms
Magnetic Shielding: No
Software Downloads
Mac Version
PC Version
DOWNLOAD PDF VERSION OF SPECS
Anechoic Measurements Model 42
